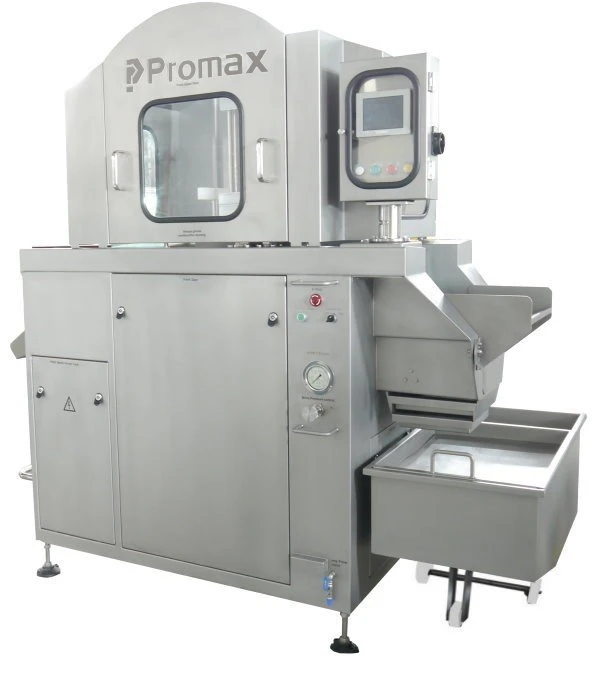

Promarks MSK-56 Brine Injector

Availability: Currently Backordered
Shipping Weight:
1,500.00 LBS


Promarks MSK-56 Brine Injector

MSK Series Brine Injector

The adjustable air piston stainless steel needles on all of the MSK series injectors make them ideal for bone-in or boneless applications. With a needle head capable of operating at 50 strokes a minute this machine will quickly inject large quantities of Bacon, Ham, Beef, Poultry or Seafood. Easy to use control panel allows the operator to quickly make adjustments as needed. Chamber allows for consistent brine pickup from batch to batch. Stainless Steel brine tank helps keep the needles and brine clear. The air piston head removes for easy cleaning, saving you time.


  • For bone-in or boneless products
  • 304 Stainless steel construction
  • Centrifugal brine pump
  • 304 Stainless steel brine tank
  • Brine mixer
  • PLC / HMI control system
  • Variable speed motor drive up to 50 strokes per minute
  • Air head design for needle force
  • Walking beam system for product movement
  • Unique needle cleaning system
  • Digital brine temperature readout
  • Easy to clean with removable injection heads
  • Closed brine circulation system
  • Easy to replace needles


  • Custom voltage


  • 56 injection needles
  • 2.2kw motor power
  • 0.25 hp brine mixing motor
  • 1.85kw brine pump power
  • 19" / 480mm walking beam width
  • 30 - 60 strokes per minute
  • 10" / 250mm product clearance
  • 15 - 60 psi brine pressure rating
  • 19 - 60 psi head air press
  • 53 gal / 200 liters brine tank capacity
  • 89" x 53" x 80" (2250x1347x2027mm) machine size
  • Promarks MSK-98 & MSK-195 Brine Injectors also available

The MSK Brine Injectors will fit virtually any injecting application. Each model incorporates "air piston - pressure adjustable - stainless steel needles" for bone-in or boneless products. The variable speed needle head operates at up to 50 strokes per minute, ideal for fish, seafood, bacon, ham, beef or poultry applications. Easy access controls, variable speed brine motor control allow the operator to adjust the pump pressure to the desired level, which will provide a minimum product pick-up of approximately 8% if required. Consistent brine pick up are maintained from batch to batch. Our MSK series consist of triple filtration system, which includes a portable stainless steel brine tank and mixer motor help keep the brine & needles clear. Also features a unique easy removable air piston head for easy cleaning.
